RF Coaxial Connectors · UHF

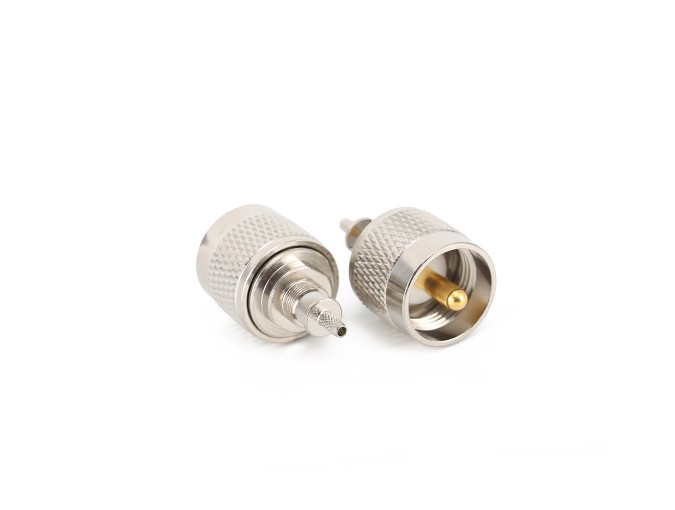

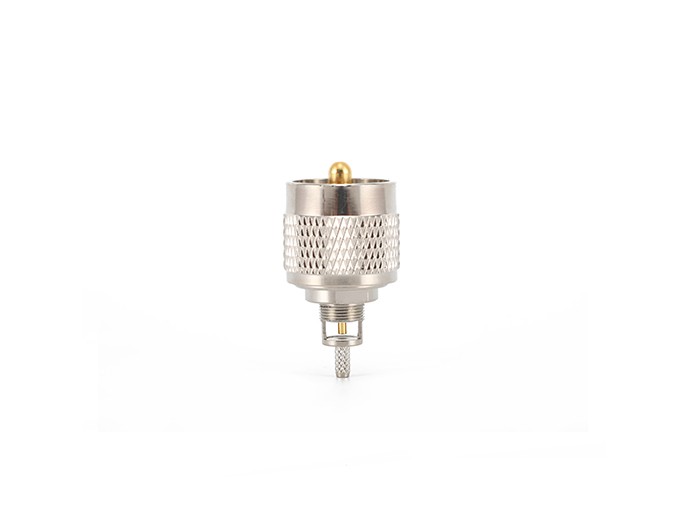

UHF Male Straight for RG316 Cable
Model: UHF-J3YA
Product Introduction
Series UHF is connectors with screw coupling mechanism.The connector is applicable from DC up to 300MHZ in the field of communication systems, CATV ,mobile radio equipment and ground control apparatus.
Detailed Information
UHF Male Straight for RG316 Cable
Teruilai P/N : UHF-J3YA
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency range | 0-300MHZ | |
| Insulation resistance | 5000MΩ | |
| Center Contact Resistance | 1.0MΩ max | |
| Outer Contact Resistance | 0.2MΩ mas | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Rohs compliant | Yes | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel |
| Contact Pin | Brass | Gold |
| Coupling nut | Brass | Nickel |
| Crimp ferrules | Copper | Nickel |
| Insulators | Teflon | |
