RF Coaxial Connectors · UHF

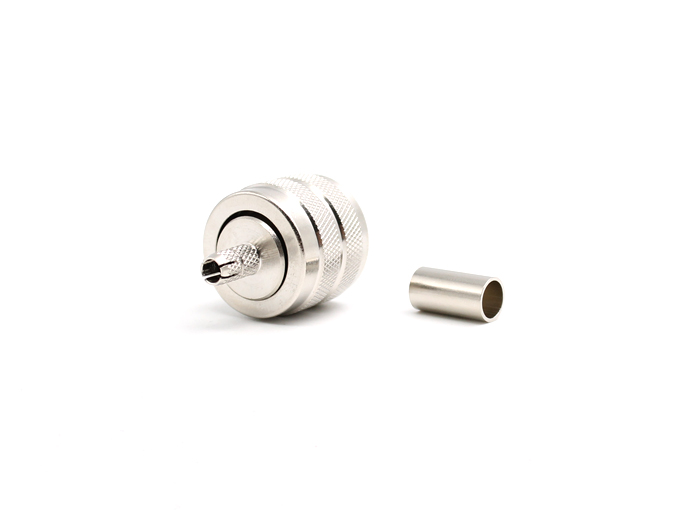

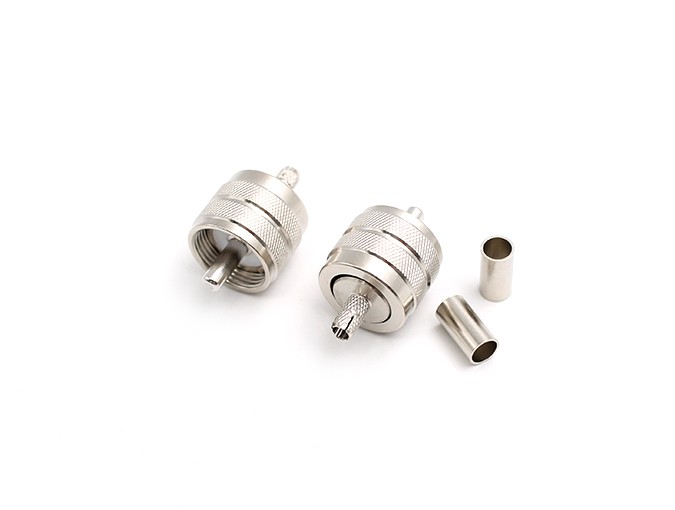

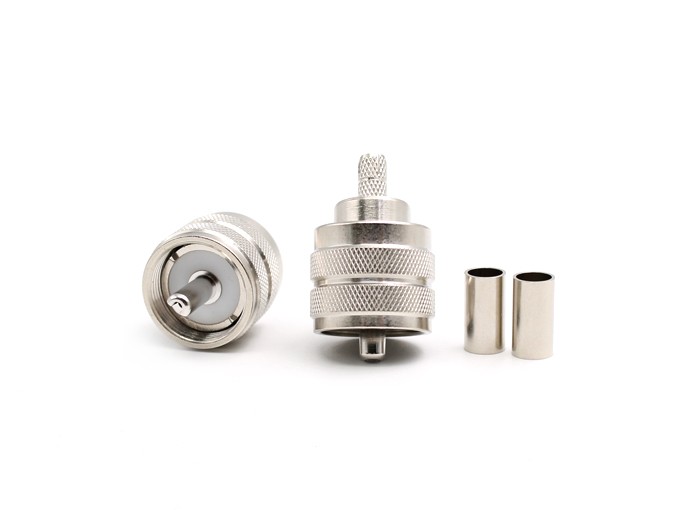

RF Connector UHF Male for RG58 cable crimp
Model: UHF-J5BY
Product Introduction
UHF is one kind of coaxial precision connectors up to 300MHZ . They can be widely used in the field of communication systems,CATV,mobile radio equipment, ship to shore communications, landing systems and ground control apparatus.
Detailed Information
RF Connector UHF Male for RG58 cable crimp
Teruilai P/N : UHF-J5BY Datasheet
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency range | 0-300MHZ | |
| Insulation resistance | 5000MΩ | |
| Center Contact Resistance | 1.0MΩ max | |
| Outer Contact Resistance | 0.2MΩ mas | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Rohs compliant | Yes | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Outer Contact | Brass | Nickel plated |
| Contact Pin | Bronze | Nickel plated |
| Coupling nut | Brass | Nickel plated |
| Crimp ferrules | Brass | Nickel plated |
| Insulators | PTFE | |
