RF Coaxial Connectors · UHF

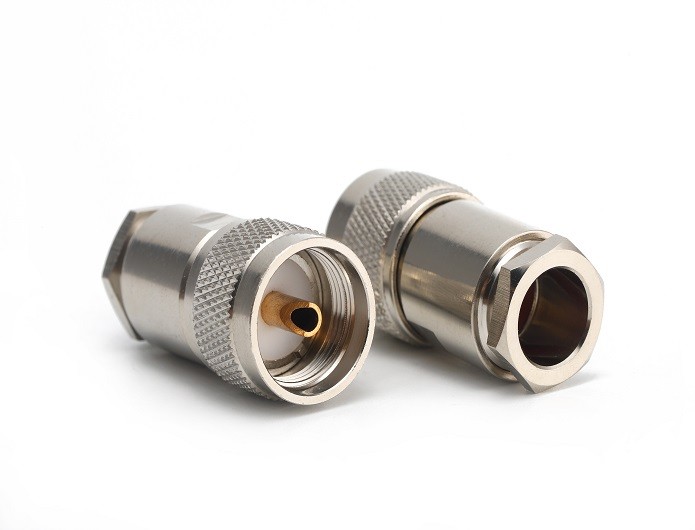

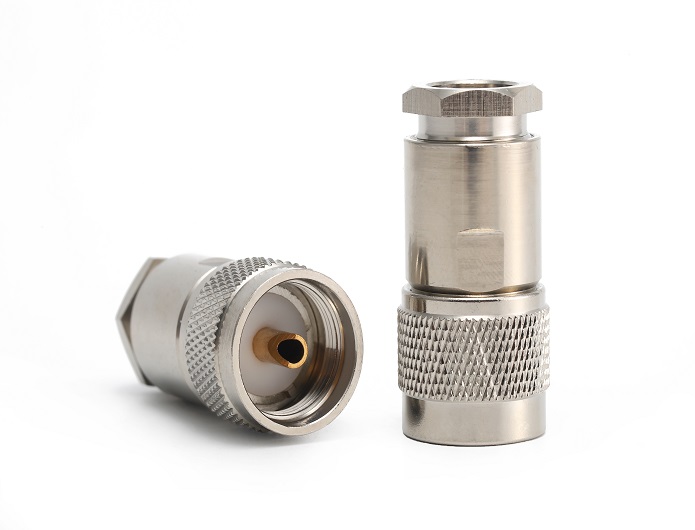

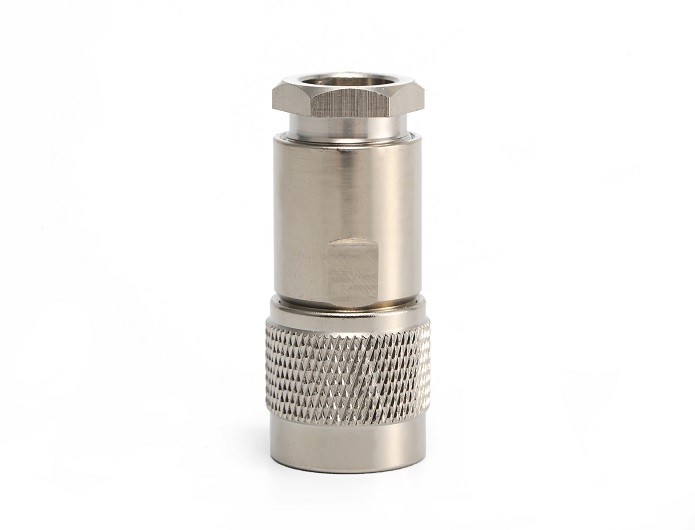

UHF Male Connector for RG214 Cable
Model: UHF-J214A
Product Introduction
UHF is one kind of coaxial precision connectors up to 500MHZ . They can be widely used in the field of communication systems,CATV,mobile radio equipment, ship to shore communications, landing systems and ground control apparatus.
Detailed Information
UHF Male Connector for RG214 Cable
Teruilai P/N : UHF-J214A Outline Drawing.pdf
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency range | 0-300MHZ | |
| Insulation resistance | ≧5000MΩ | |
| Dielectric strength | 2000V | |
| Working Voltage | ≦750V | |
| Center Contact Resistance | ≦5MΩ | |
| Outer Contact Resistance | ≦5MΩ | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 85℃ | |
| Rohs compliant | Yes | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | nickel plated |
| Contact Pin | Bronze | Gold-plated |
| Insulators | Teflon | |
